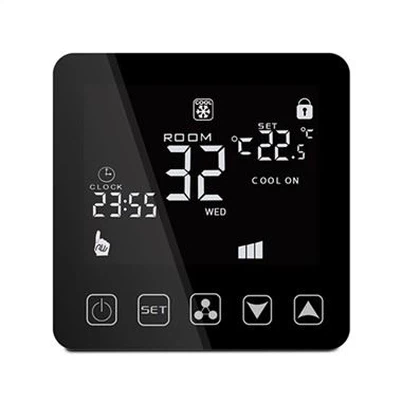

Fcu Thermostat Controller
Application: HY08AC-3 0-10V output for central air condition and fan coil units
Feature:
1. Touch screen display
2. Chare Over-Heating/Cooling
3. Configurable for 2 pipes/4pipes system
4. Weekly programmable
5. Keycard function
Model:
HY08AC-3 24V+0-10V
Description
Xiamen Hysen Control Technology Co., Ltd. is one of the most credible manufacturers and suppliers of fcu thermostat controller in China, also supports customized service. Please feel free to wholesale discount fcu thermostat controller from our factory.
Production Introduction
HY08AC-3 FCU Thermostat Controller digital thermostat provides proportional-integral (PI) individual room temperature control with a 0~10VDC analog output in FCU air conditioning systems, ventilation systems.This thermostat have 5+2,day 5-2 day ,7days programmable for centrol air conditioner or fan coil units. Provide simpleto-use control of 2-pipe or 4-pipes. KeyCard function is used for hotels to keep on saving-energy temperature in non-occupancy and return back the set point in occupancy.
Large LCD touch screen display with many messages for quick and easy checking and operation. Such as temperature measurement and set point, fan and valve working status, clock and program, etc.
Product Specifications
Voltage: | AC90~240V |
Range of temperature display: | 1~70°C |
Display accuracy: | 0.5°C |
Running program: | Set per 1 week as a cycle |
Output: | On/off type |
Setting range: | -10~60°C |
Work environment: | Normal environment |
Probe sensor: | NTC(10k)1% |
Current: | 3A |
Backlight: | Blue White |
Size(mm)： | 86*86*27mm |
Product Feature
1.Easy to read
LCD screen can display working status such as room temperature, set point, etc. Makes reading and operating easy and accurate.
2. User-friendly setting
FCU thermostat controller weekly programmable 5+2 days,5-2days,7days with four times periods of auto turning on/turning off the thermostats.
3. Save money on energy bills
when used with motion detectors,automatically turn the heat offwhen no motion is detected..
Product Application
HY08AC-3 0-10V+24V output
Packing Listing
1 pc Smart thermostat
1 pc User Manual(in English)
A pair of screw
FAQ
Q1:Are you a factory?
A:Yes we are, with more than 18 years experiences in thermostats.
Q2 :What about the lead time?
Smaple 3 days, mass production time needs 5-10 days after we get payment.
Q3:Does this work with Google Home?
A:Compatible with Amazon Alexa, Google Assistant and IFTTT
Q4:Can I control the thermostat if I am not at home?
A:Yes, you can remotely control our thermostat and adjust the temperature.
