Central Air Conditioner Thermostat
Application: fan coil unit, central air conditioner
Feature:
Heating and cooling control
4 pipe for cold and hot water
High-Efficiency
Three color panel, balck, white, gold
Funtion: WIFI control, Fan energy saving control
Model:
HY08AC-3
HY08AC-3 WIFI
HY08AC-3 MODBUS
Description
Xiamen Hysen Control Technology Co., Ltd. is one of the most credible manufacturers and suppliers of central air conditioner thermostat in China, also supports customized service. Please feel free to wholesale discount central air conditioner thermostat from our factory.
Production Introduction
Central air conditioner thermostat.
Works fan coil of central AC (4 pipes)
Clear display with simple control info
ON/OFF control of electric valve, and 3-speed fan
Installation:mounted in 86x86mm wall junction box
Product Specifications
Power: | 90 -240Vac 50/60Hz |
Display accuracy: | 0.5°C |
Range of temperature display: | 0~70°C |
Output： | On/off type |
Work environment: | -10~60°C |
Limit temperature range: | 1~70°C |
Default Range of temperature adjustment: | 5~35°C |
Probe sensor: | NTC (10k) 1% |
Size(mm)： | 86*86*17 |
Place of Origin: | Fujian, CN |
Material: | Anti-flammable PC +ABS |
Design Style: | Modern |
Product Feature

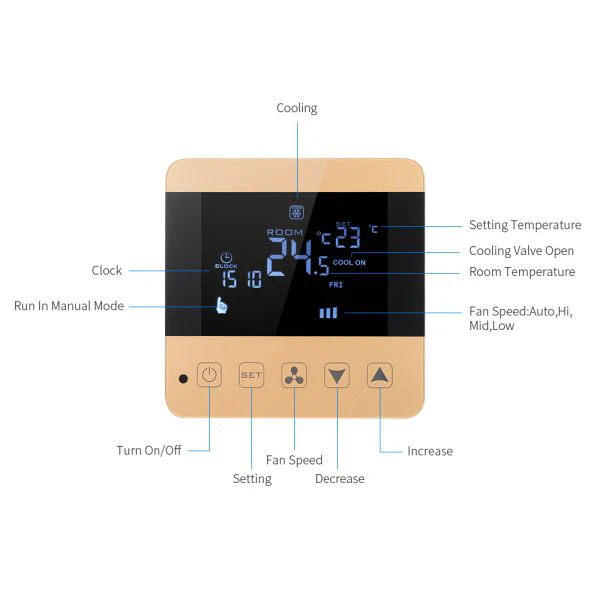

Temperature controller equipped with LCD screen, it can display room temperature, heating or cooling, wind speed or clock.
The product have high quality, flame retardant ABS material, resistant to abrasion, corrosion and long service life.
Product Application
Central air conditioner thermostat.
Four pipe: control fancoil unit and heat valve of two ways and cold valve of two ways; Please, according to your system to choose your thermostat please, if you need sales assistance, feel free to contact us.
The power supply must be installed properly; The front end of the temperature control system must be equipped with a power control switch or a separate power outlet; The power supply must be cut when the temperature control system is not required to operate.
Packing Listing
1 * Thermostat
1 * User Manual
1 pair of screws
FAQ
Q1: Do we have our own factory?
A1: We are a professional manufacturer of temperature controller, built in Xiamen, China. There are professional R & D and production departments, as well as professional sales team to provide good services for you.
Q2: What can you buy from us?
A2: thermostats, temperature controller, actuator, thermostatic radiator valve etc
Q3: App Language?
A3: Depending on the local language, support English, Chinese, Spanish, German, French, Italian, Polish, Romanian etc...
