HY530-A Glass Panel Heating Controller
Power: 90-240Vac-50/60Hz Range of temperature display: 1-70°C Display accuracy: 0.5°C Insulating condition: Normal environment Probe sensor: NTC(10k)1% Contact capacity: 3A/(WW);16A/(WE/LD) Output: Switch relay Limit temperature range: 1~70°C Installation: recessed type (in the wall) Range of temperature adjustment: 5-35°C Size(mm):86*86*7mm LED touch screen Tempered glass screenVery stylish and attractive design Ultra-thin design:Thickness is only 7mm Detachable frame
Description
Xiamen Hysen Control Technology Co., Ltd. is one of the most credible manufacturers and suppliers of hy530-a glass panel heating controller in China, also supports customized service. Please feel free to wholesale discount hy530-a glass panel heating controller from our factory.
Production Introduction

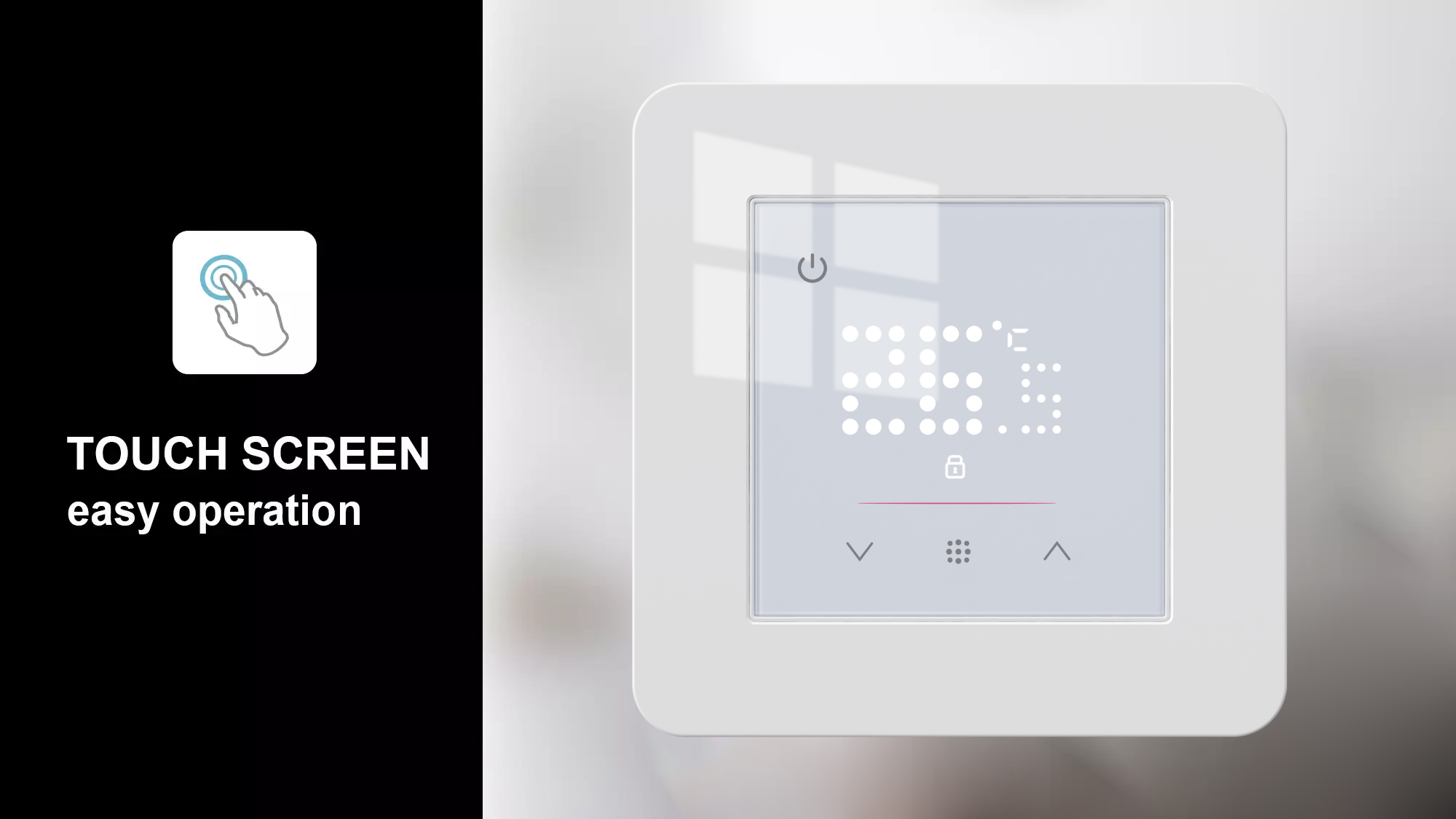

HY530-A is a premium underfloor heating thermostat with an LED touchscreen tempered glass display, enabling direct screen tap for parameter setting. It features an ultra-thin 7mm design with a detachable frame, supports 0.5°C high-precision temperature control (5~35°C adjustable range), and is compatible with electric heating, water heating, gas/electric boilers, and heat pumps. With reliable 16A dry contact output and NTC(10k) sensor, it delivers stable, precise climate control for home and commercial spaces.
Product Specifications
|
Power: |
90-240Vac 50/60Hz |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |

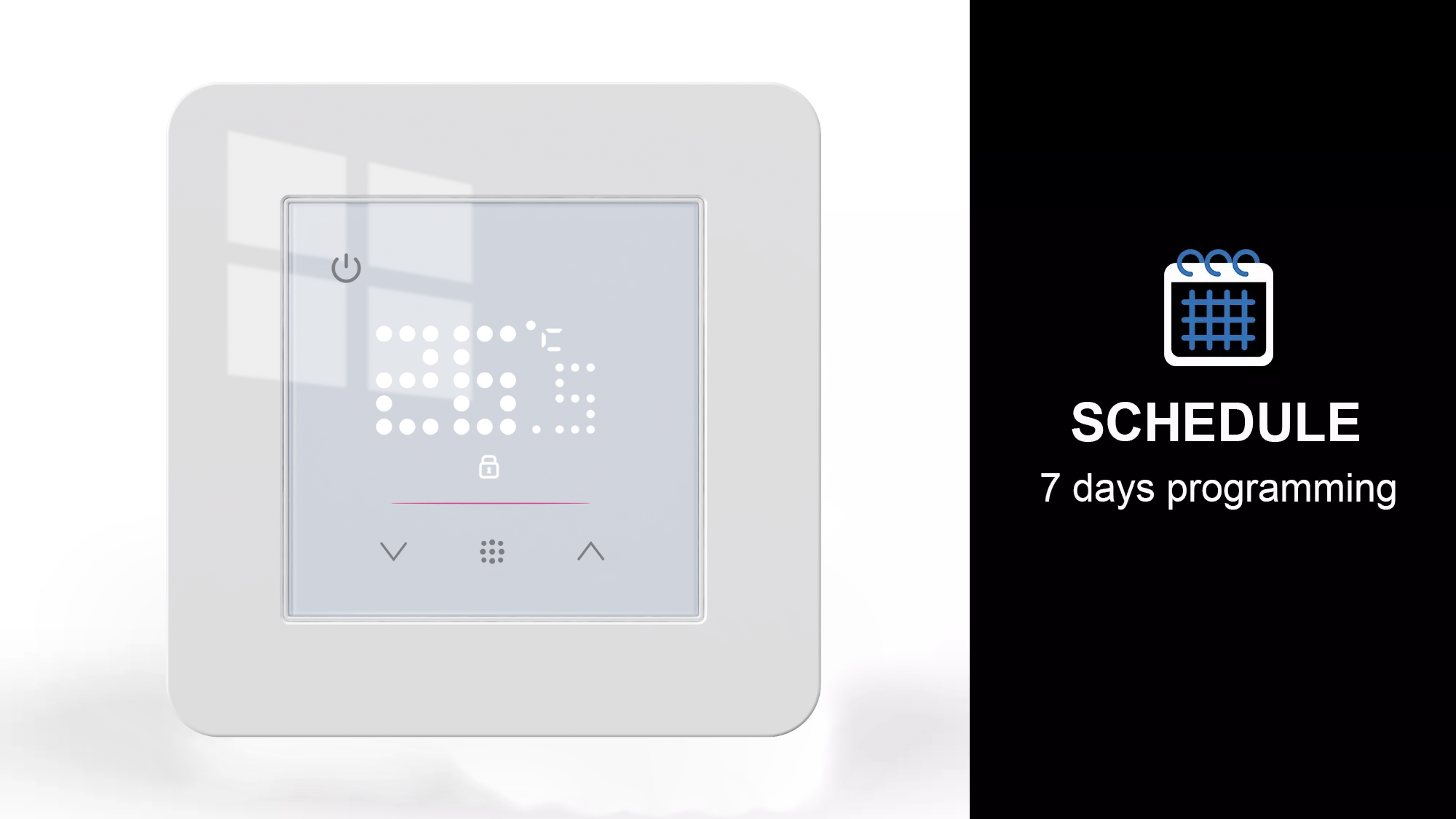

5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW); 16A(WE/LD) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|

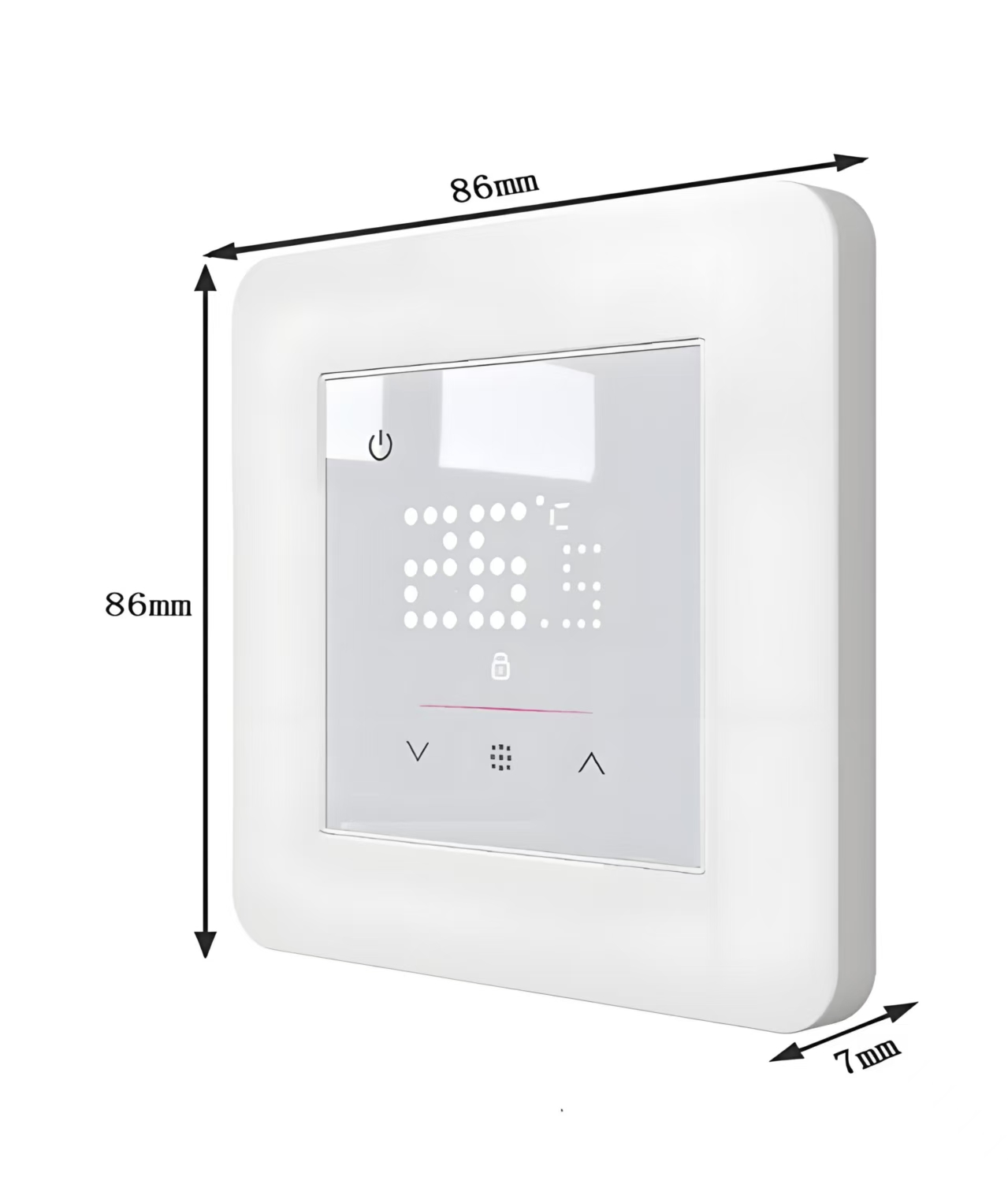

Size(mm)： |
86*86*7mm |

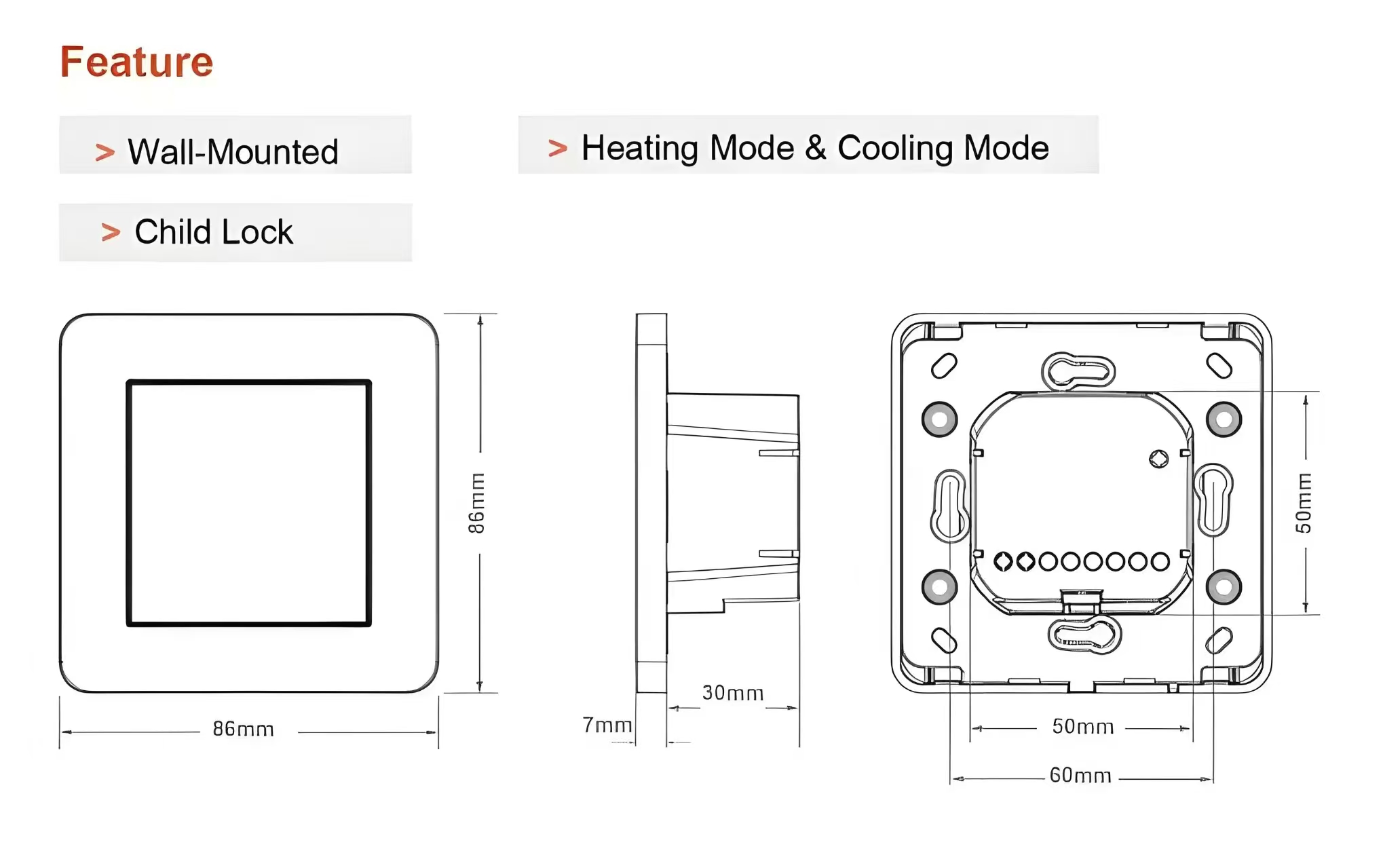

Product Feature
Product Application
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
