What is a Dry Contact on a Thermostat?

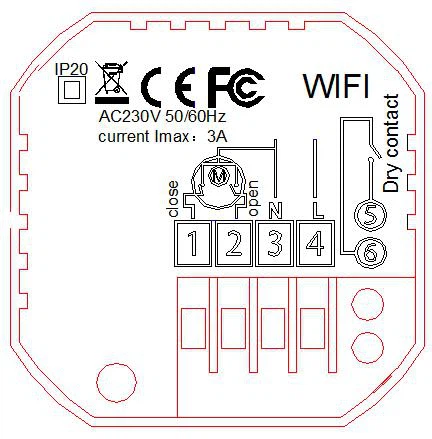

If you're involved in HVAC or smart home installation, you've likely encountered the term "dry contact." It's a fundamental concept that plays a crucial role in how thermostats interact with a wide array of equipment. Simply put, a dry contact refers to a simple switch within a thermostat that has no electrical voltage or current of its own.
Think of it as a standard light switch on your wall. The switch itself doesn't generate electricity; it only mechanically opens or closes a circuit to allow power to flow (or stop it) from another source. This is the essence of a dry contact: it's an isolated relay that makes or breaks a connection without sharing any electrical potential with the devices it controls.
Why are Dry Contacts Universally Used in Gas Boiler Thermostats?
The prevalence of dry contacts in gas boiler thermostat systems is not accidental but is a deliberate design choice driven by exceptional safety, broad compatibility, and simplified installation processes.
The primary reasons can be summarized as follows:
1. Intrinsic Safety
This is the most critical reason. Gas boilers are typically powered and controlled by an independent low-voltage (often 24V AC) transformer. A dry contact acts like a completely isolated switch; its internal circuitry is electrically separated from the thermostat's own power source (which may be battery-powered or use a separate supply).
No Risk: The thermostat simply makes or breaks this control circuit through a mechanical relay, without introducing any external voltage into its own circuits and without being damaged by voltage fluctuations from the boiler side. This fundamentally eliminates the risk of equipment damage or even safety hazards caused by electrical interference or faults.
2. Universal Compatibility
The range of gas boiler brands and models is vast, and the design of control circuits (such as slight differences in voltage and current) can vary between manufacturers. Dry contact thermostats solve the challenge of "universal adaptation."
Universal "Switch": Because it only functions as a simple switch and does not provide or rely on a specific voltage, a single dry contact thermostat can be used with almost any brand of gas boiler, circulation pump, or wall-hung boiler without worrying about voltage mismatch. This greatly simplifies inventory and product selection.
3. Simplified Installation and Diagnostics
For installers, wiring a dry contact is very intuitive and straightforward.

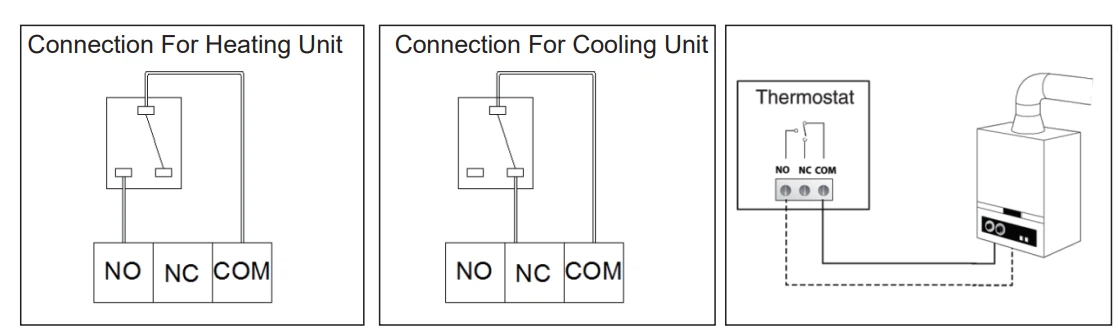

Simple Wiring: It usually only requires connecting the two wires from the boiler's control terminal (often labeled "TT" - Thermostat, "Call for heat," or "LR/LS") to the thermostat's dry contact terminals. There is no polarity to observe, and no need to distinguish voltage.
Easy Troubleshooting: If the system fails to operate, troubleshooting is very direct: use a short piece of wire to jumper (short) the two terminals on the thermostat. If the boiler starts, the problem is with the thermostat; if it doesn't, the issue lies with the boiler or the wiring. This simple logic significantly saves maintenance time.
4. High Reliability
Simple structure means a lower probability of failure. A high-quality dry contact relay can withstand hundreds of thousands of switching operations, offering a very long lifespan, making it perfectly suited for heating systems that need to run uninterrupted for years.
Installers can use a single product for the vast majority of gas heating projects, reducing the cost of learning and inventory.
Users enjoy smart and convenient control while the foundation of the system maintains the highest level of safety and stability.
In summary, for gas boiler thermostats, a dry contact is like a universal, safe, and reliable physical switch. It perfectly isolates complex intelligent control logic (such as programming, WiFi connectivity, and algorithmic learning) from the simple, high-power boiler execution system. This allows it to leverage the advantages of smart control while ensuring the safe and stable operation of the underlying equipment. This is precisely why it has endured and become the universal industry standard.
