What is a central heating management system?
Leave a message
1. What is a centralized control system?
Central heating controls, also known as boiler controls, refer to any system that helps manage heating for an entire property or for each room. This includes programmers, timers and thermostats. They can help households save energy and, in turn, It also saves money
Central heating controls, also known as boiler controls, refer to any system that helps manage heating for an entire property or for each room. This includes programmers, timers and thermostats. They can help households save energy and, in turn, It also saves money
2. Principle of centralized control system
According to the changes in the room and the user's demand for temperature, the heating system is intelligently regulated. When the temperature is higher than the set value, the centralized control box will issue a closing instruction to the actuator, so that the temperature in the specific area drops to the temperature set by the user. When the temperature is lower than the user's set value, the centralized control box will issue an opening
instruction to the actuator, and the temperature in the area will rise, thereby achieving the heating effect. Through precise temperature control and intelligent adjustment methods, the centralized heating control system can achieve rational use of energy and stable operation
3. Classification of centralized control systems
There are many types of centralized control systems. Wired and wireless are the simplest types. Users can choose based on the decoration of their home or property.

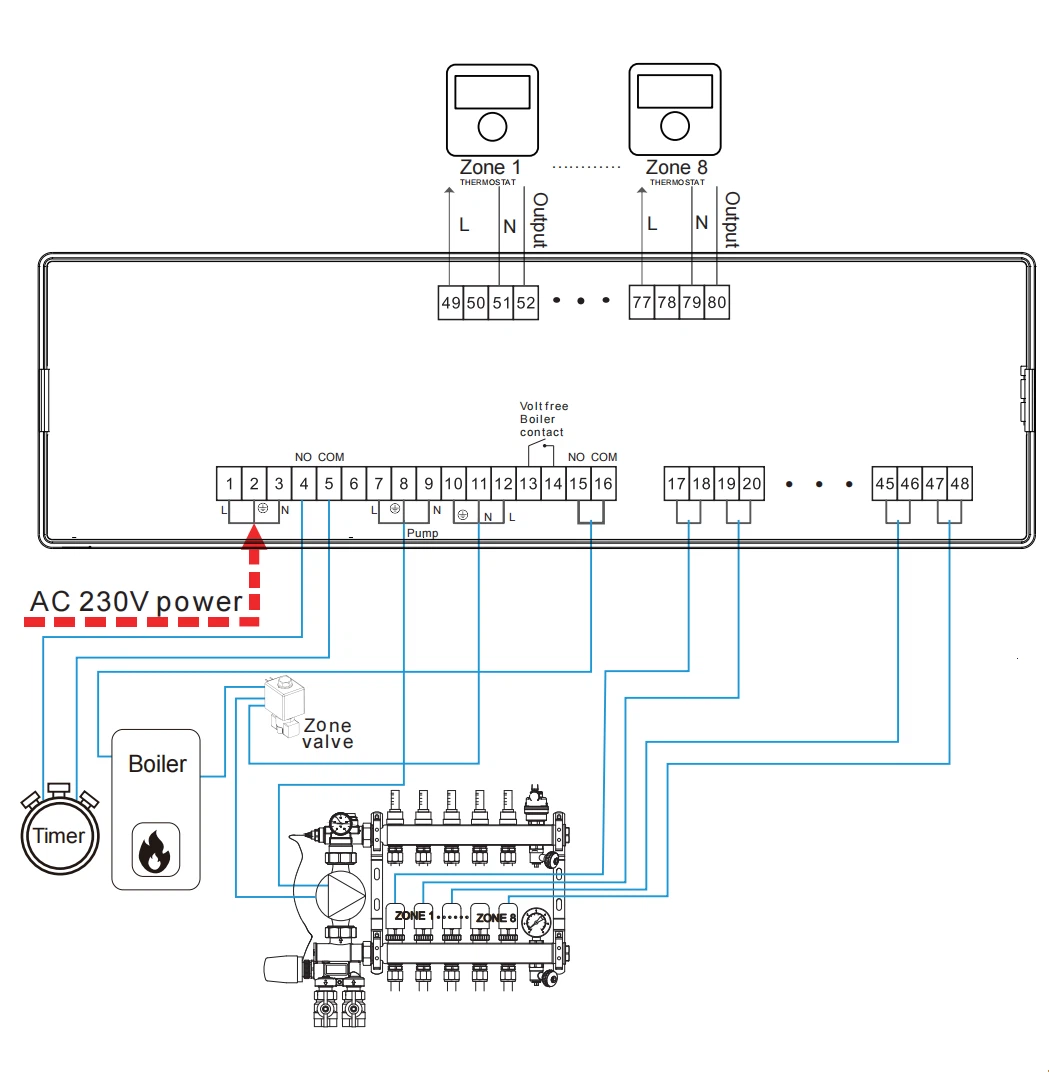

The wired centralized control box communicates information by directly connecting the thermostat and the control box. It is not very compatible with the thermostat. You can connect most brands or models of thermostats.

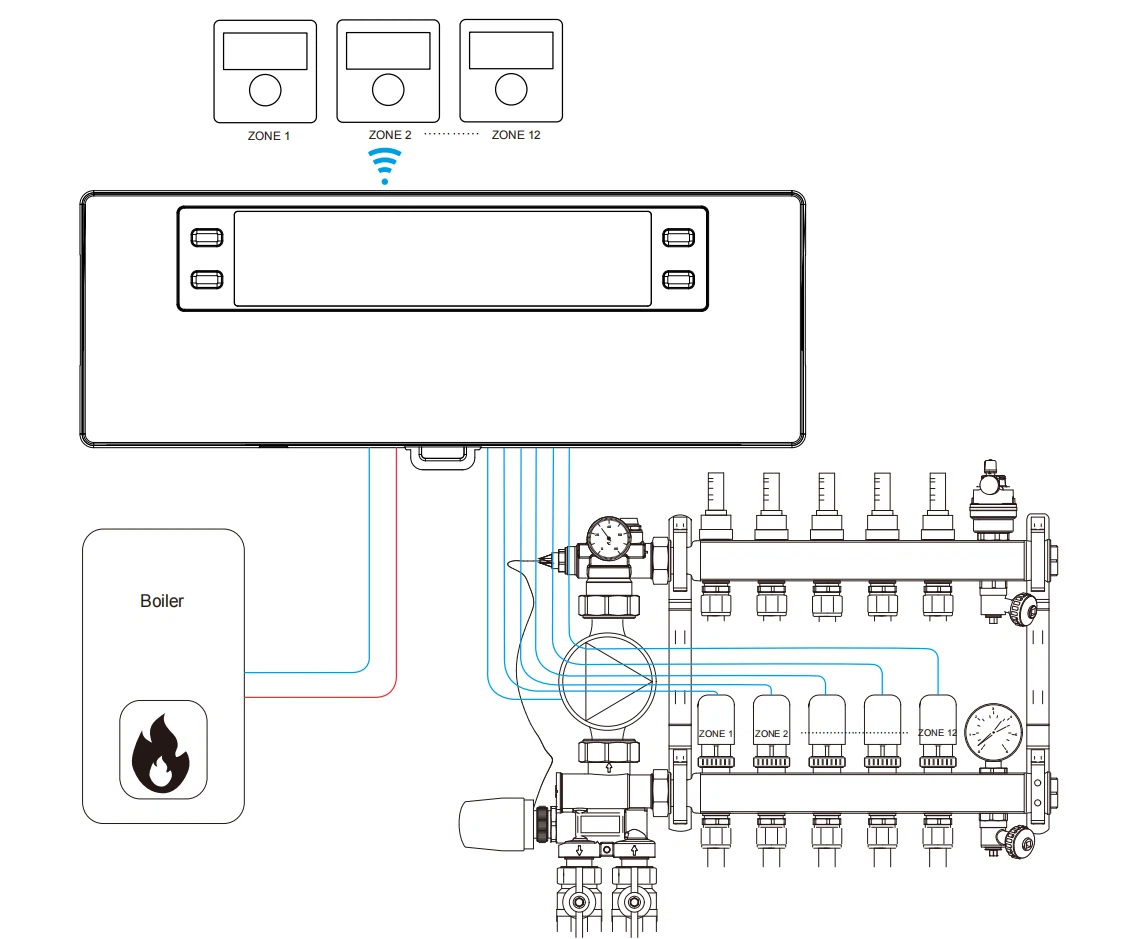

Wireless thermostats communicate through wireless signals by having a common module inside, such as an RF wireless module. Therefore, the centralized control box will have very high requirements for the thermostat, requiring only specific thermostats to work with the control box.
4. Functional characteristics of centralized control system
System control, centralized control box has multiple zones, you can connect only one heater to control multiple zones systematically, in the control center of the system, you can directly control each zone, such as on /off
Realize regional intelligence and make different settings according to the different temperature requirements of each area. Intelligent management, through the various functions of the thermostat to complete the intelligent temperature control of the centralized controller, such as programming mode, holiday control mode, etc., with the task planning function, so that each area can reach a comfortable state
Energy-saving mode: the system can realize automatic energy-saving operation through the signal sent by the thermostat according to the user's usage habits and setting requirements
Real-time monitoring: users can quickly understand the status of each area on the thermostat interface or the centralized control box interface, intelligently analyze the temperature status, and issue alarms in time. Real-time monitoring of the system can timely understand the operating status of the system, and solve problems in time to ensure the normal operation of the system.
5. Centralized control system components

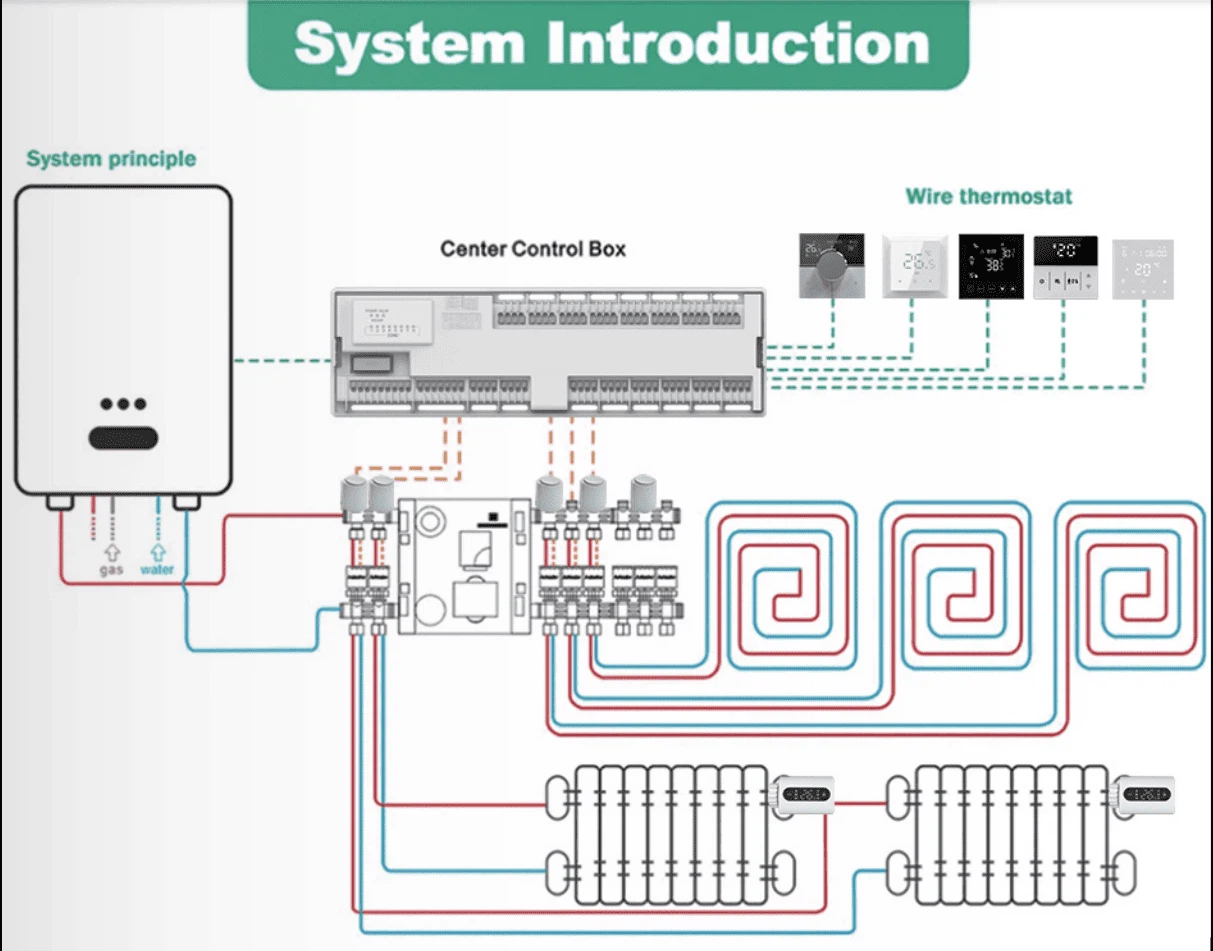

The centralized control system mainly includes the centralized control room (including sensors, centralized control box, water distribution control center, etc.), actuators, regulating valves, and thermostats. The control box is the core of the system, which is responsible for collecting, monitoring, and adjusting the operating status of the heating system. When the temperature is fed back to the thermostat, the thermostat sends a command to the central control box, which follows the command to adjust the heating system's heating by opening or closing the valve to maintain the indoor temperature stable.
Summarize
Central heating control system is a system that can realize centralized control and management of heating system, and improve the efficiency of heating system and user comfort through intelligent adjustment and precise temperature control. In modern society, as people's awareness of energy conservation and environmental protection increases, this instrument will play an increasingly important role in the heating system of buildings and communities.
