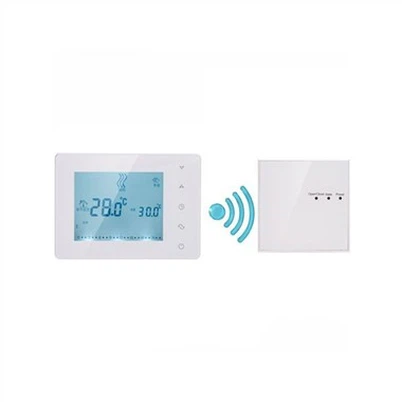

Wireless Boiler Control Thermostat
Function: HY02B05RF digital LCD battery thermostat is used to control gas boiler with dry contact
Model:
HY02B05RF BW
HY02B05RF WE
HY02B05RF WW
Description
Production Introduction
HY02B05RF Wireless Boiler Control Thermostat, It uses a simple chip of high reliability which has excellent performance and strong anti-interference capability. Child lock protection to prevent children from malfunctioning. Data memory function in case of power failure. The holiday mode allows you to enjoy a more comfortable temperature when you return home from vacation. Easy to use, you can also use the thermostat button to set different working modes.
Product Specifications
|
Power: |
2AA*1.5V alkaline batteries |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW/LD) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
86*86*25mm |
|
Material: |
Anti-flammable PC +ABS |
Product Feature
1. Digital Thermostat for Gas Boiler and Water Floor Heating: The gas boiler thermostat is with LCD digital display screen. It is with two sections of AA batteries and a 5A contact capacity. It is used to control boilers to start or stop working in order to adjust the temperature. The thermostat detects room temperature, when the actual room temperature is lower than your set temperature, the thermostat controls the boiler to start working. Then thermostat controls the boiler to stop working when the actual room temperature is higher than your set temperature.
2. Programmable Schedule with Weekly Programming Selection: Supports manual set up 5+2,6+1 and 7 days weekly schedule for option, providing you with the maximum convenience for different situations.Data memory when power is off.
3. Holiday Mode with Countdown: Holiday days and temperatures can be set to run in countdown mode and enabling you to enjoy more comfortable temperatures on holiday.
4. White Backlight with Children Lock: Easy operation even at night. Make a contribution to environmental protection by saving energy with 2*AA battery powered.
Product Application
Material: ABS, plastic
Color: White
Power supply: 2 x AA batteries (not included)
Power: <0.3W
Charging current: 3A (water heating)
Diaplay temperature range: 0-40°C
Working temperature: 1-70°C
Accuracy: ±0.5°C
Setpoint temperature range: 5°C - 35°C
Output: Switch Relay
Probe sensor: NTC (10K) 1%
Contact capacity: 5A boiler heating
Running Program: Set by 1 week in the cycle
Size: approx. 8.7 x 8.7 x 2.8 cm.
Weight: approx. 170 g/6 oz
Packing Listing
1*HY02B05 battery thermostat
1* user manual
2* screws
