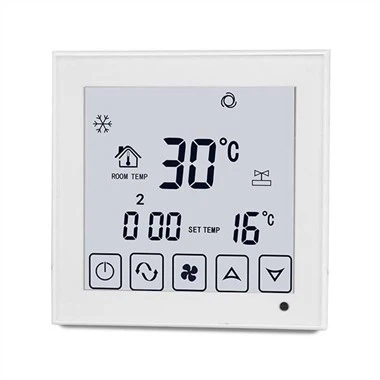

Fan Coil Thermostat 120v
HY03-1AC/HY03-1AC WIIF
Application: for Central air conditioner/Fan Coil Units
Feature:
2- or 4-pipe fan coil units
Valve control via 2-point or 0…10 V output
Supports 3-speed fans
Key Code Facility
Description
Xiamen Hysen Control Technology Co., Ltd. is one of the most credible manufacturers and suppliers of fan coil thermostat 120v in China, also supports customized service. Please feel free to wholesale discount fan coil thermostat 120v from our factory.
Production Introduction
The Fan Coil Smart Thermostat is our Smart Fan Coil Thermostat with 3 speed fan support. When connet internet you can control your system from anywhere and support is provided for both 2&4 pipe systems.
Precise comfort control in individual rooms through precise temperature detection.
Product Specifications
|
Power: |
AC90-240V/AC24V |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
AC90-240V |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
86*86*27mm |
Product Feature
Thermostat can control heating / cooling elements to adjust the temperature of the user, to make up a comfortable home. You can set any temperature in which they want. HY03AC-WIFI Thermostat can be controlled by mobile phone, so the user can not use phone as a remote control, to control space heating/cooling anywhere and at any time.
1. 3 Speed Fan Control:automatic, high speed, medium speed, and low speed.
2. White/Blue Back light with internal sensor(NTC) the range is 5℃‑35℃, with high accuracy and strong anti-interference.
3. Can be integrated into building management systems via Modbus/RS485
4. Fan Coil Smart Thermostat Control Types Supported
2 Pipe System (Selectable Heat or Cool only)
2 Pipe System (Cool Only)
4 Pipe System (Heat & Cool (Fans for Cool only)
4 Pipe System (Heat, Cool & Auto)
5. Fan Coil AC Thermostat have Week/Periods Setting Support three weekly programming selections (5+2, 6+1, 7) and 4 periods settings.
Product Application
for Central air conditioner/Fan Coil Units
FAQ
How is temperature controlled in FCU?
Fan Coil Units are an example of devices which can adjust temperature locally. They use a fan to recirculate room air over water/air heat exchange coils. Water generally offers significant savings in the process of distribution of media for heating and cooling compared to air.
